Model Number: J0011D01B
Payment & Shipping Terms
Minimum Order Quantity: 5PCS-Free Samples
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Products Type: |
RJ45 Magnetic Jack |
Gender: |
Female |
Port Configuration: |
1x1 |
Shielding: |
Shielded |
Number Of Positions / Contacts Per Port: |
8P8C |
Performance Category: |
Cat 5, Cat 6 |
Products Type: |
RJ45 Magnetic Jack |
Gender: |
Female |
Port Configuration: |
1x1 |
Shielding: |
Shielded |
Number Of Positions / Contacts Per Port: |
8P8C |
Performance Category: |
Cat 5, Cat 6 |
The Pulse J0011D01B is a reliable 10/100 Base-T RJ45 connector designed to meet the demands of modern Ethernet applications. This RJ45 magnetic jack offers high performance and durability for various industrial and commercial networking needs. Featuring a 1x1 port configuration with 8P8C contacts, the connector provides shielded protection and supports Cat 5 and Cat 6 performance categories. With a through-hole termination style, J0011D01B ensures a secure and stable connection. 10/100 Base-TX RJ45 1x1 Tab-DOWN with LEDs 8-pin (J0 series) integrated magnetics connector (ICM), designed to support applications, such as SOHO (ADSL modems), LAN-on-Motherboard (LOM), Hub and Switches.
| Part Number | J0011D01B |
Speed | 10/100BASE-T |
Number of Ports | 1x1 Single Port |
Application - LAN | ETHERNET (WITHOUT PoE) |
Latch | Down |
Pin Type | THT SOLDER |
Temperature | 0 TO 70℃ |
Listing Description: |
|
| 1) manufacture RJ45 Magnetic Jack for 16years Experience |
| 1)ISO9001, SGS, UL, CE, REACH Certification |
| 3)Main customer: TI GE SONY Samsung IBM CANON |
| 4)PULSE OEM for 9 years |
Detailed Description: |
|

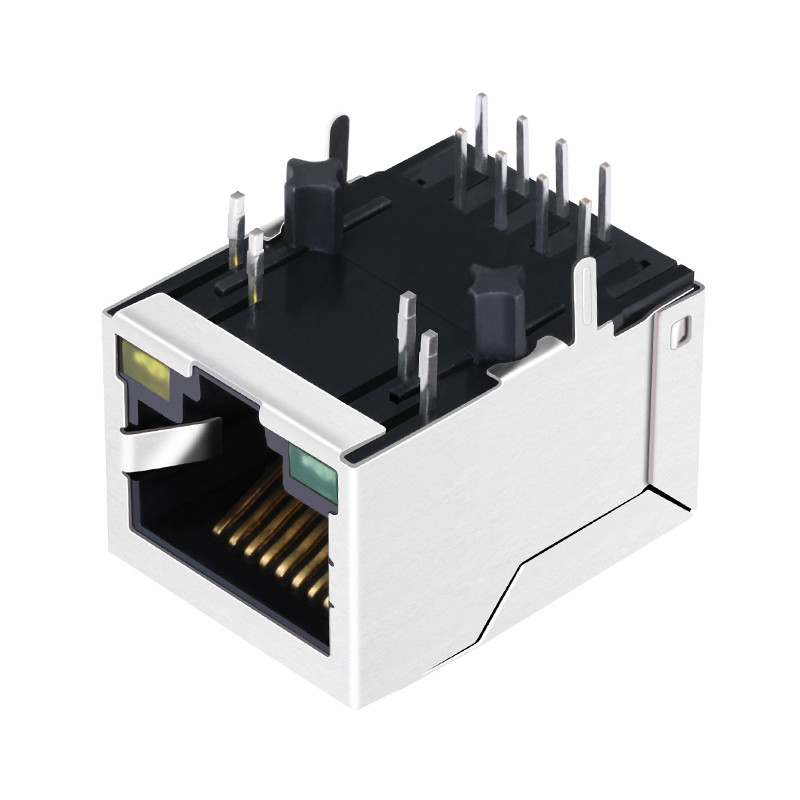

Side Entry 8P8C RJ45 Modular Jack J0011D01B 1x1 Tab-DOWN with LEDs 8-pin | |
1. Characteristics: | 1) RJ45 Connector with integrated transformer/common mode choke |
| 2) Available in SMD, THT, and THT with USB |
| 3) 350µH min. OCL with 8mA bias |
| 4) Complies with IEEE 802.3 |
| 5) Extended temperature range -40°C to +85°C available |
| |
2. Operation/Application: | 1) 10 / 100 Base-T |
| 2) xDSL Modems |
| 3) Embedded PC |
| 4) LAN Applications |
| 5) Hub, Router, Switches |
3. Mechanical Attachment: | |
1) Jack Configuration | 1X1 |
3. Electrical Characteristics: | |
1) Shielded | Yes |
4. Termination Related Features: | |
1) EMI Finger | Yes |
2) Termination Method | Solder |
5. Body Related Features: | |
1) Port Configuration | Single |
2) EMI Fingers -Top and Sides | With |
3) Latch Orientation | Standard - Latch Down |
4) PCB Tail Length | 3.50±0.50mm |
6. Contact Related Features: | |
1) Preloaded | Yes |
2) Contact Termination Type | Through Hole |
7. Housing Related Features: | |
1) Connector Style | Jack |
8. Industry Standards: | |
1) RoHS/ELV Compliance | RoHS-compliant, ELV-compliant |
2) Lead-Free Solder Processes | Wave solder capable of 265°C |
3) RoHS/ELV Compliance History | Always was RoHS compliant |
9. Identification Marking: | |
1) Left LED Color | Green or Yellow |
2) Right LED Color | Green or Yellow |
10. Conditions for Usage: |
|
1) Applies To | Printed Circuit Board |
2) Environmental Conditions | Office / Premises |
3) Operating Temperature (°C ) | 0 - 70/-40 - +85 |
11. Configuration Related Features | |
1) Magnetic Circuit | 3D15 |
2) Status Indicator | LED |
3) Decoupling Capacitor | With/Without |
4) Rear PCB Ground Tab | With/Without |
5) Signal Lead Quantity | 8 |
