Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001,Reach,RoHS
Model Number: LPJ19201DNL
Payment & Shipping Terms
Minimum Order Quantity: 900
Price: Supportive
Packaging Details: 150PCS/Reel,6Reels=900PCS=35.5*35.5*35cm=10KG
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Product Name: |
LPJ19201DNL |
Gender: |
Female |
Ethernet: |
1x10/100Mbps IEEE802.3 |
Indicator: |
LED Flexible |
Ratio Turn: |
1:1 |
Samples: |
Available |
Product Name: |
LPJ19201DNL |
Gender: |
Female |
Ethernet: |
1x10/100Mbps IEEE802.3 |
Indicator: |
LED Flexible |
Ratio Turn: |
1:1 |
Samples: |
Available |

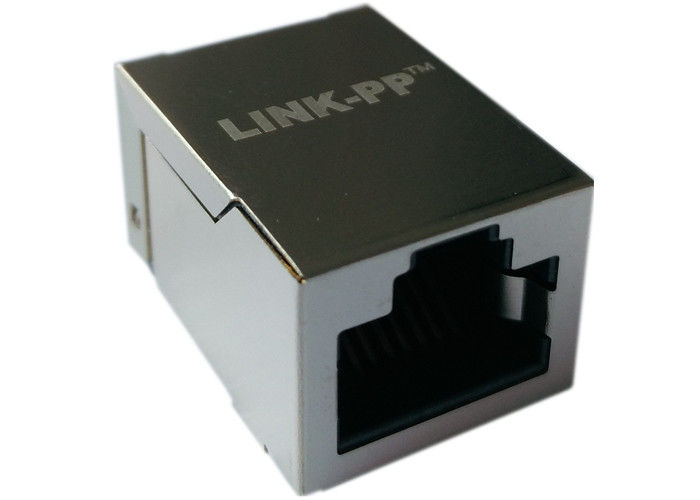

SMT rj 45 modular plug for 10/100Mbps Ethernet
Surface Mount Rj45 Connector Without LED
SMT MAGJack Network Interface Module
1500Vrms Isolation
1:1 Turn Ratio
Electrical Specification@25℃:
1.Turns Ratio(±2%) :
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz 100mVrms 8mA DC bias current
3.Insertion Loss(dB Max):
1-80MHz:-1.0 100MHz:-1.2
4.Return Loss(dB Min @100Ω):
1-60MHz:-14 60-100MHz:-10
5.Crosstalk: 1-80MHz:-35dB Min
6.IR Reflow peak temperature: 260 degc.
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: 0℃～70℃
