Product Details
Place of Origin: Guangdong, China
Brand Name: LINK-PP
Certification: RoHS, REACH
Model Number: 1840538-6
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: $0.25
Packaging Details: Tray
Delivery Time: Ships within 5 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6000K-PCS/Month
Port Matrix Configuration : |
1x2 |
Latch: |
Tab-up |
Gender: |
Female |
Shielded: |
YES |
Connector Type: |
RJ45 Connector With Magnetics |
Speed: |
1000base-T |
LED: |
With |
Operating Temperature: |
0°C To +70°C |
Port Matrix Configuration : |
1x2 |
Latch: |
Tab-up |
Gender: |
Female |
Shielded: |
YES |
Connector Type: |
RJ45 Connector With Magnetics |
Speed: |
1000base-T |
LED: |
With |
Operating Temperature: |
0°C To +70°C |

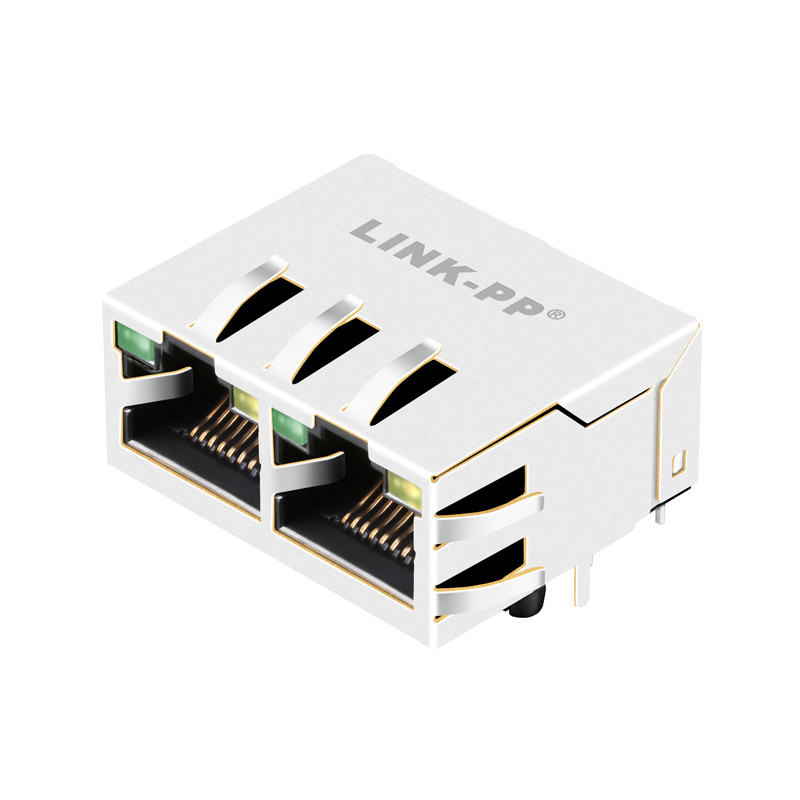

The 1840538-6 features a dual-port (1x2) configuration with a tab-up latch design, providing reliable connectivity for Gigabit Ethernet applications. It is a female connector that comes with integrated magnetics, ensuring enhanced EMI protection. The connector also includes LED indicators for link and activity status. With a supported speed of 1000Base-T and an operating temperature range of 0°C to +70°C, this RJ45 jack is suitable for a wide range of networking environments.
The LINK-PP 1X2 RJ45 Connector series offers a versatile solution with two ports, available in both top (vertical) and side entry configurations. This series provides options for shielded and non-shielded versions, integrated LED indicators, and EMI fingers to meet various design requirements. These connectors are ideal for multiple applications, including network servers, TV set-top boxes, switches, routers, and more. Additionally, LINK-PP supports OEM and ODM customization to tailor the connectors to your specific needs. For any inquiries or customization requests, please feel free to contact us at any time.
Q: What is the brand name of the RJ45 Multi Port Jack?
A: The brand is LINK-PP.
Q: What is the model number?
A: The model number is LPJG25314A47NL which is compatible with 1840538-6 RJ45 1x2.
Q: What certifications does the 1x2 Female RJ45 Connector have?
A: The LINK-PP Connector is certified with RoHS and REACH.
Q: What is the minimum order quantity for the 1840538-6 RJ45 Jack?
A: The minimum order quantity is 100 pcs.
Q: How long does receiving the Products take?
A: Ships within 5 days.
Q: What is the supply ability for the 1000base-T RJ45 Connector?
A: The LINK-PP factory's supply ability is 6000K-PCS/Month.
