Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ISO,ROHS,REACH

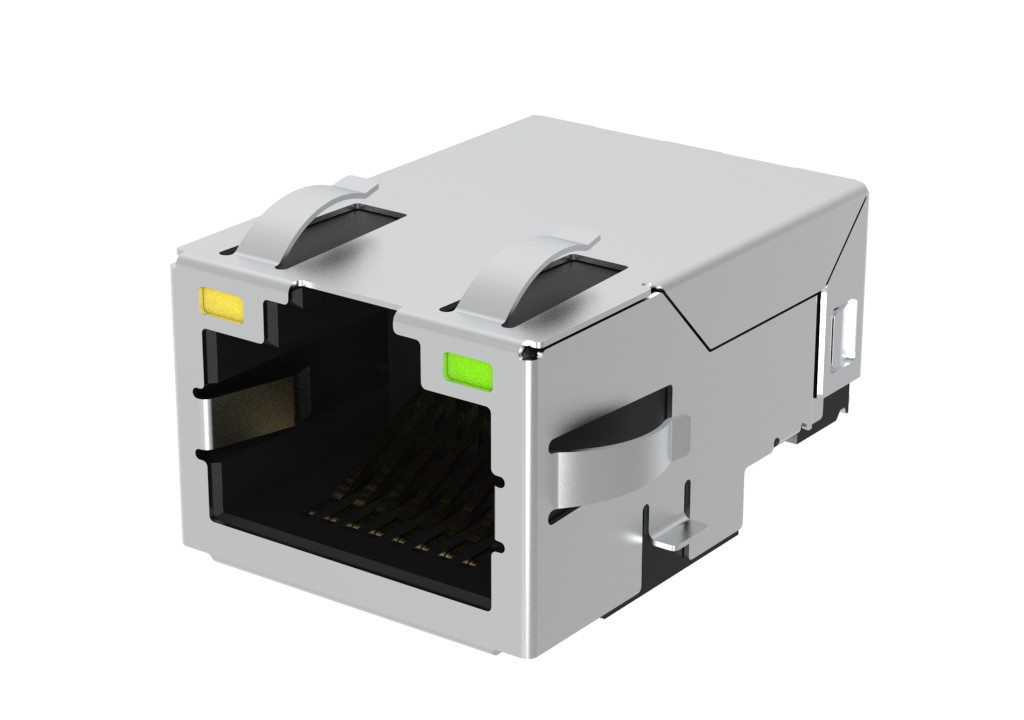

Model Number: RJMG221ST12452T
Payment & Shipping Terms
Minimum Order Quantity: 40pcs
Price: $1.2 - $6.86
Packaging Details: Tape & Reel
Delivery Time: 1-2 Weeks
Payment Terms: T/T, L/C, Western Union, NET30/60/90 Days,
Supply Ability: 5KK/Month
Series: |
RJMG Series - RJMG221ST12452T |
Connetor Type: |
Sink Type |
Number Of Ports: |
1x1 |
Mounting: |
Surface Mount |
Speed: |
1000 Base-T / 1G |
LED Color: |
Green - Yellow |
Series: |
RJMG Series - RJMG221ST12452T |
Connetor Type: |
Sink Type |
Number Of Ports: |
1x1 |
Mounting: |
Surface Mount |
Speed: |
1000 Base-T / 1G |
LED Color: |
Green - Yellow |
| PARAMETER | LIMITS (MAX. OR MIN.) | FREQUENCY RANGE/TEST CONDITIONS |
| INSERTION LOSS (RX/TX) | -1.0dB MAX. | 1-100MHz |
| RETURN LOSS (RX/TX) |
-18dB MIN. -16dB MIN. -12dB MIN. -10dB MIN. |
1-30MHz 30-60MHz 60-80MHz 80-100MHz |
| CM-CM REJECTION | -30dB MIN. | 1-100MHz |
| CROSSTALK ISOLATION (RX/TX) | -30dB MIN. | 1-100MHz |
| HIPOT(ISOLATION) | 2250V DC | 60 Sec. |
| OLC | 350µH MIN. | 100kHz,100mV 8mA |
| TURN RATIO | 1:1 ±5% |
1. Terminal Parts:
1.1. RJ Terminal : Phosphor Bronze, C5191, Thickness=0.30mm Finish: 15u" gold plating on contact area, 100u" min. tin on solder tail area, underplating 30u" MIN. Nickel overall.
1.2. RJ input Terminal: Brass, Thickness=0.35mm
Finish: 100u” min. tin over 30u” MIN. Nickel.
2. Plastic Parts:
2.1. Housing: HIGH-TEMPERATURE PLASTIC BLACK
Flame Class: UL94 V-0
2.2. Coil Case: HIGH-TEMPERATURE PLASTIC BLACK
Flame Class: UL94 V-0
3. Shield: Stainless steel, SUS304, Thickness=0.20mm, 50u" MIN. NI PLATED OVERALL
