Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: RoHS,FCC

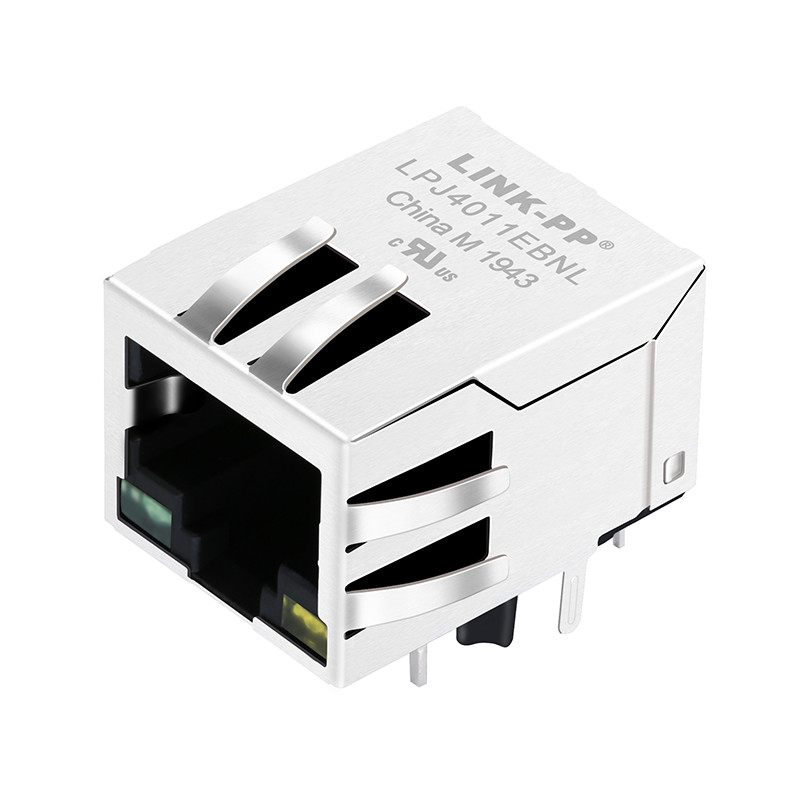

Model Number: HR913129C (LPJ4011EBNL）
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: $0.5.-$0.9
Packaging Details: Blister Pack
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000000/Month
Series: |
8P8C RJ45 Connector |
Number Of Ports: |
Single Port |
Latch: |
Tab-UP |
Magnetics: |
With |
LED: |
Left Green，Right Yellow |
RoHS Compliant: |
Yes |
Series: |
8P8C RJ45 Connector |
Number Of Ports: |
Single Port |
Latch: |
Tab-UP |
Magnetics: |
With |
LED: |
Left Green，Right Yellow |
RoHS Compliant: |
Yes |
| Items |
Shielded RJ45 Connector |
|---|---|
| Material Specification | |
| Housing | PA66 GF Black UL94V–0 |
| Shield | 30u" Nickel over 0.20mm Thickness Brass |
| Insert |
PA66 GF Black UL94V–0 Phosphor Bronze 0.35mm Thickness Plating Area: 30u" gold over 50u" nickel Solder Area: 100u" tin over 50u" nickel |
| Mechanical Performance | |
| Mating force | 5 lbs Maximum |
| Unmating force | 5 lbs Maximum |
| Plug to Jack Retention force | 20 lbs Minimum |
| Operating life | 750 Cycles Minimum |
| Operating and Storage Temperature | |
| Operating Temperature Range | 0°C ~ +70°C |
| Storage Temperature Range | -40°C ~ +85°C |
1. Environmental and Safety Certifications
2. High-Performance Electrical Characteristics
IEEE 802.3 Standard Compatible:
3. Design Optimization and Reliability
4. Typical Applications
| Parameter | Condition | Min | Max | Unit |
|---|---|---|---|---|
| Turn Ratio | TX=ICT:ICT, RX=ICT:ICT | ±2% | - | - |
| Inductance (OCL) | @100kHz, 0.1V, 8mA DC Bias | 350 | - | µH |
| Insertion Loss | 1.0–65MHz | - | -1.0 | dB |
| Return Loss | 1–10MHz | -20 | - | dB |
| 10–30MHz | -16 | - | dB | |
| 30–60MHz | -12 | - | dB | |
| 60–100MHz | -10 | - | dB | |
| Cross Talk | 1–30MHz | -40 | - | dB |
| 30–60MHz | -35 | - | dB | |
| 60–100MHz | -30 | - | dB | |
| Common Mode Rejection | 1–50MHz | -30 | - | dB |
| 50–150MHz | -20 | - | dB | |
| Hipot Test | - | 1500 | - | Vrms |
| Operating Temperature | - | -40 | +85 | °C |
