Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 74990111215
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: $0.625↑
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
74990111215 |
Part Status: |
Active |
Mounting Type: |
Through Hole |
Mounting Angle: |
Right Angle |
Termination Style: |
Solder |
Tab Direction: |
Tab Down |
Application: |
10/100 Base-T |
Series: |
WE-RJ45 LAN |
Part Number: |
74990111215 |
Part Status: |
Active |
Mounting Type: |
Through Hole |
Mounting Angle: |
Right Angle |
Termination Style: |
Solder |
Tab Direction: |
Tab Down |
Application: |
10/100 Base-T |
Series: |
WE-RJ45 LAN |

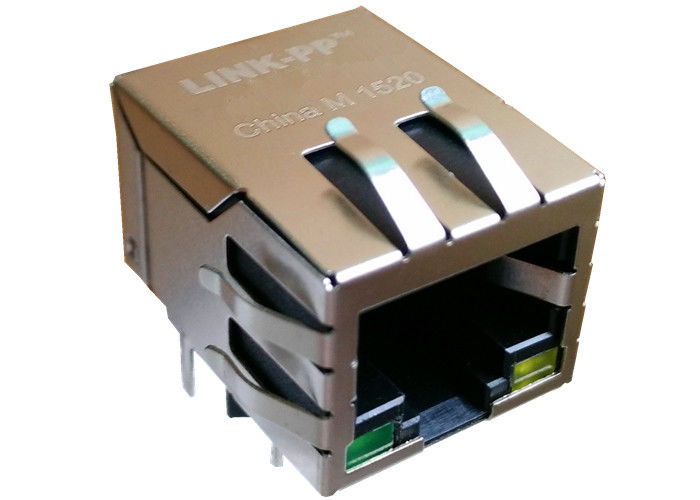

The 74990111215 Through Hole RJ45 Connector is active for 10/100 Base-T and AutoMDIX applications. It has a 1X1 single port configuration and is shielded with an EMI finger for enhanced performance. The RJ45 Connector has a 90° angle orientation, yellow-green LED color, and solder termination. Operating between 0°C and 70°C, it offers reliable connectivity with a gold-plated contact finish thickness of 30.0µin.
| TURNS RATIO/POLARITY: | (P1-P3):(J1-J2)= 1:1, ±2%. (P4-P6):(J3-J6)= 1:1, ±2%. |
| INDUCTANCE: | 350uH min.,100kHz,100mV,8mADC. |
| DIELECTRIC RATING: | 1500Vrms for 1 minute between P1-J1(tie P3+P4). |
| INSERTION LOSS: | -1.0dB max. @ 1MHz - 100MHz |
| RETURN LOSS: |
-18dB min. @ 1M - 30MHz -16dB min. @ 30M - 45MHz -14dB min. @ 45M - 60MHz -12dB min. @ 60M - 80MHz |
| CROSSTALK: | -35dB min. @ 1MHz - 100MHz |
| COMMON MODE REJECTION: | -35dB min. @ 1MHz - 100MHz -25dB min. @ 100MHz - 500MHz |
| OPERATING TEMPERATURE RANGE: | 0℃ to +70℃ |
|
