Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: MSA,RoHS
Model Number: DEM-310GT
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: $0.06-$2.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Connector Type: |
LC |
Hot Pluggable: |
Yes |
Cable Type: |
Single-mode 9 Um Fibre |
Wavelength: |
1310 Nm |
Class 1 Laser: |
EN 60825-1 |
FDA 21: |
1040.10 & 1040.11 |
Warranty: |
2 Year Limited Warranty |
Support: |
Free Technical Support |
Connector Type: |
LC |
Hot Pluggable: |
Yes |
Cable Type: |
Single-mode 9 Um Fibre |
Wavelength: |
1310 Nm |
Class 1 Laser: |
EN 60825-1 |
FDA 21: |
1040.10 & 1040.11 |
Warranty: |
2 Year Limited Warranty |
Support: |
Free Technical Support |

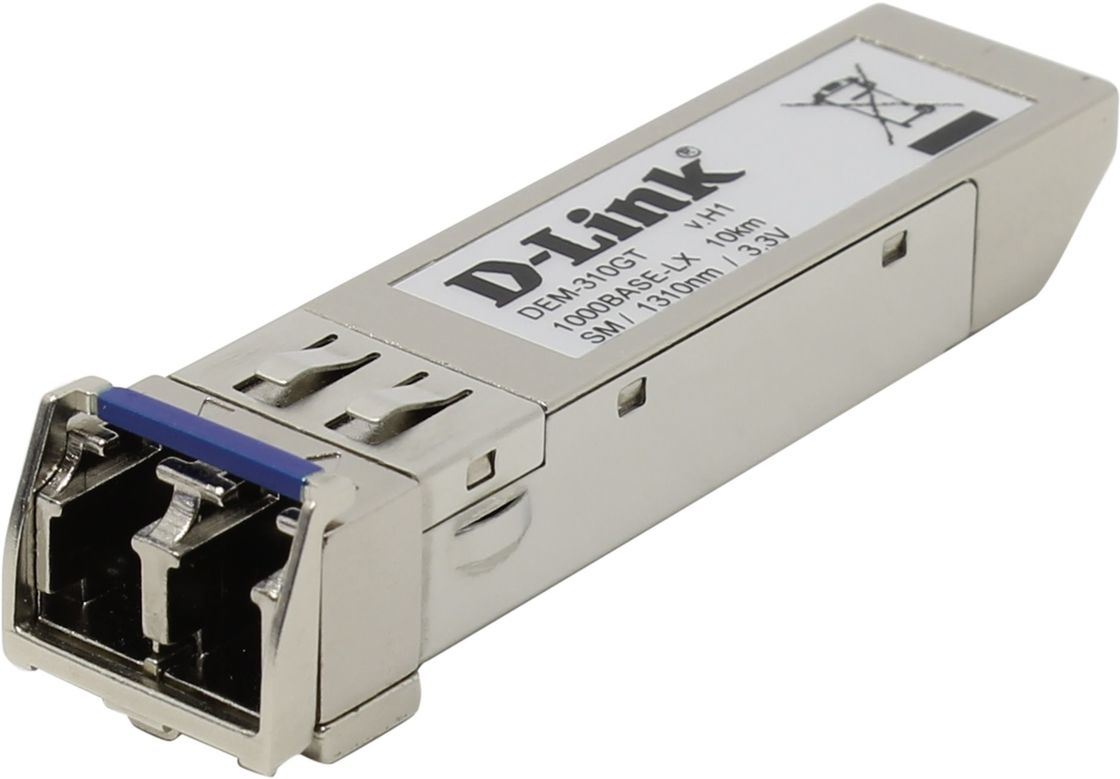

Boost your network performance with D-Link DEM-310GT, a high-performance single-mode SFP (mini-GBIC) transceiver. This SFP module supports full-duplex gigabit speeds over single-mode fiber. Provides reliable connectivity up to 10 kilometers. The DEM-310GT sets a benchmark for high-performance single-mode SFP transceivers.
- Small Form Pluggable Design:
SFP modules amplify bidirectional data transmission signals, providing a compact and cost-effective solution.
- Long-Range Connectivity:
The DEM-310GT features a 1310nm wavelength and 1.25 Gbps speed, suitable for single-mode fiber deployment. The maximum transmission distance is up to 10 kilometers.
- Robust Construction:
This SFP Single Mode Module features a durable metal casing to reduce EMI and increase durability.
- Hot-Pluggable Convenience Design:
Allows installation and replacement without disrupting network operations, minimizing downtime.
- Compatibility Assurance:
100% integration with switches, routers, and other networking equipment supporting SFP modules.
- MSA and RoHS Compliance:
This SFP transceiver adheres to Multi-Source Agreement (MSA) standards, ensuring compatibility with various networking equipment. Additionally, it is RoHS-compliant, promoting environmental sustainability.
- FDA, CDRH, TUV Laser Safety Certified:
It prioritizes safety with certifications for laser eye safety and adherence to stringent safety standards.
- Digital Diagnostics (DDM):
Monitor and optimize network performance in real-time.
- Temperature Range:
Operating within 0°C - 70°C, the DEM-310GT adapts to various deployment scenarios.
|
Transceiver Type |
SFP |
|
Fibre Media Support |
Single-mode |
|
Speed |
1.25 Gbps |
|
Distance |
10 km |
|
Compliant Standard |
IEEE802.3z 1000BASE-LX |
|
Fiber Channel FC-PI standard |
100-SM-LC-L |
|
Connector |
Duplex LC connector |
|
Single / Bi Direction |
Single-direction |
|
Wavelength |
1310 nm |
|
Cable Type |
Single-mode 9 um fibre |
|
Power Supply |
3.3 V |
|
Max Input Current |
300 mA |
|
Hot Pluggable |
Yes |
|
MSA Compliant |
Yes |
|
RoHS Compliant |
Yes |
|
MIN Power Budget |
11.5 dB |
|
MAX Power Budget |
18 dB |
|
Dimension ( W x D x H ) |
13.4mm x 56.4mm x 10.35mm |
|
Operation Temperature |
0°C - 70°C |
|
Storage Temperature |
-40°C - 85°C |
